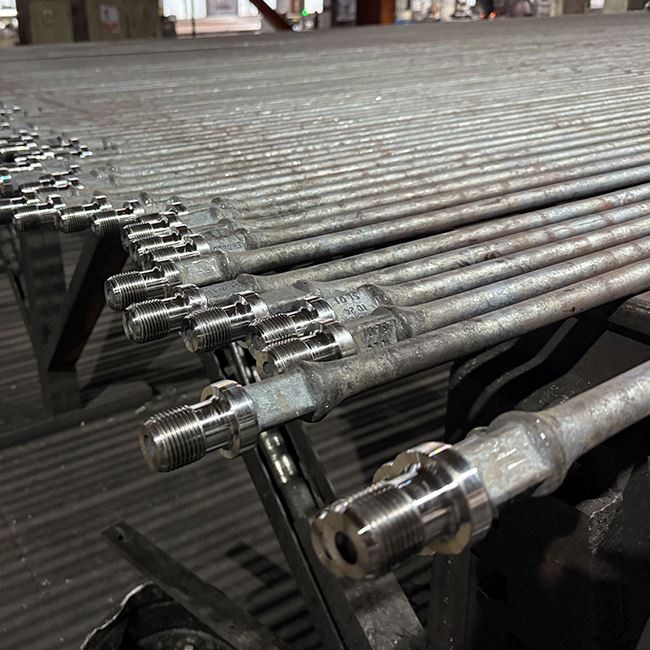

Sucker Rod ye

sumaya berewye bere juruw ye minnu fanga ka bon-porozɛw la minnu bɛ kɛ biɲɛ-pɔnpe (bere wulicogo) siratigɛ la walasa ka segin-ka-bɔnye lamaga ka bɔ sanfɛla pɔnpe yɔrɔ la ka taa duguma pɔnpe la. A ka c’a la, bere juru dafalen bɛ kɛ ni sutura berew, sow, ɲɔgɔndanw ani sinker baraw ye, ni bere jɛlen dɔ bɛ kɔlɔn kun na min bɛ tɛmɛ fɛn falen kɛsu fɛ. Octal Pipe bɛ nɛgɛ (solid) sutura berew dilan u bonya ni u suguya bɛɛ la, ka fara fibreglasi sutura berew kan walasa ka girinya dɔgɔya ani ka sɔgɔsɔgɔ.

Lasegin hakɛ (a bɛ kɛ cogo min na):

• Kɛnɛma cɛmancɛ (OD): .5/8 in ka se 1-3/4 in ma (a dafalen bɛ API 11B ni Octal legacy catalogue kelen-kelen bɛɛ la).
• Janya: 1 . 25 ft walima 30 ft ye sutura berew ye; 2–10 ft sow berew.
• Bere suguyaw:Suman berew, sow berew, bere polisilenw, sinker baraw; fɛn kɛrɛnkɛrɛnnenw i n’a fɔ drive/anti-twist/centralized rods minnu bɛ sɔrɔ ɲinini senfɛ.

Ni aw ka biɲɛ pɔnpe kɔlɔnw y’a daminɛ ka boli waati bɔnɛ, a sababu ka teli ka nɔgɔya:kalasi sugandili jugu, ɲɔgɔndan sɛgɛn kɔlɔnw kɔnɔ minnu bɔra sira wɛrɛ kan, walima jiri tiɲɛnen minnu tɛ se ka kɛ-. O kɔfɛ, sannifeere bɛ siri sɛgɛsɛgɛli sɔsɔliw la minnu bɛ na, sɛbɛnw tununnenw, ani forow dɛsɛw.

Sannikɛla teliyalenw ka sɛgɛsɛgɛli sɛbɛn (a ci ni RFQ ye):OD & janya seriyali, grade, coupling type (T walima SM; FS walima SH), kɔlɔn cogoyaw (corrosion/deviation), sɛbɛnw wajibiyalenw, ani NDT scope o scope.

Sucker rod pump setup (sucker rod pump setup) bɛ se ka da a kan dɔrɔn i n’a fɔ bere juru sugandili. PO kan, sannikɛlaw ka teli ka bere grade, pin/box thread, coupling class, ani corrosion/wear protection fɛn o fɛn datugu walasa bere juru ka bɛn pɔnpe doni ni kɔlɔn cogoya ma.

• Pɔnpe doni cogoya: Aw bɛ bere hakɛ ni a cɛmancɛ bɛn doni kuncɛlenw ni sɔgɔsɔgɔninjɛ porogaramu ma.
• Lamini min bɛ sɔgɔsɔgɔ: Aw bɛ CO2/H2S ŋaniya ni ji tigɛcogo ɲɛfɔ walasa ka lakanani suganditaw sugandi.
• Thread + coupling control: Filɛri cogoya ni jɛɲɔgɔnya kalasi jira walasa ka make-up koɲɛw dɔgɔya.
• Tally discipline: Joint-by-joint marking and packing list walasa ka rig-site mix-ups dɔgɔya.

Sariya:API Spec 11B – "Sucker Rods and Rod-related Products" (scope laban bɛ nɛgɛ & FRP berew, couplings, sub-couplings, bere polished ani liners, thread gauges, ani sɛgɛsɛgɛli fɛɛrɛw la).

Nɛgɛdaga (API):C, K, D, KD, HL, HY – sugandilen don kɔlɔn juguya fɛ, doni fɛ, a jiginni fɛ, ani a sɔgɔli fɛ. (Katalogu octal legacy)

Fɛn minnu bɛ kɛ ka caya (nɛgɛberew):AISI 4130M/4138M/4142M/4330M/8630 (Octal ciyɛn nafolomafɛn).

Fibre de verre sutura bere (FRP):API 11B-ye FRP berew datugu walasa ka girinya ni sɔgɔli nafa sɔrɔ.

Pompi Sistɛmu Basic Operation Flow i n’a fɔ a bɛ fɔ cogo min na

Sisεmεti lajɛlen: Mansin ni ɲɔgɔndan bere bɛ sumaya bere bila ka wuli ka jigin kɔlɔn jugumanw kɔnɔ.

Baarakɛcogo:

Jiginni (downstroke) bɛ kɛ: A bɛ degun juguw lase mɔgɔ ma.

Upstroke (yɛrɛlabɔli).: A bɛ tulu kɔrɔta ka taa sanfɛ ni fɛn dilanni tubabukan ye.

Fɛɛrɛko siratigɛ la:

Baarakɛ doni: 15-45 kN

Funteni hakɛ: -40 degere fo 150 degere

A bɛnnen don: Tuluforo kɔrɔw ma, kɔgɔjida laminiw, ji tigɛlen kɔlɔnbaw

Nafa jɔnjɔnw: Fanga ka bon, a bɛ se ka sɔgɔsɔgɔ, a bɛ ɲɔgɔn cɛ tigitigi

• OD tɔgɔlama: 1 .5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", fo ka se 1-3/4" ma (poroze sinsinnen).
• Filɛriw cogoyaw:API sucker rod threads for pin/box ka kɛɲɛ ni API 11B ye; PR (Polished Rod) pinɛ bɛ bere polisilenw kan yɔrɔ minnu na a ɲɛfɔlen don; jateminɛw ni jateminɛ kɛcogo minnu bɛ API 11B kelen-kelen bɛɛ la.
• Tilenbaliya & muɲuliw:I n’a fɔ API 11B y’a jira cogo min na (runout, end upset dimensions, thread tolerances).

Kɔlɔn deviated kɔnɔ, a ka c’a la, coupling ye yɔrɔ fɔlɔ ye min bɛ sɔngɔ sara-bari o ye...ɲɔgɔnkanu + sɔgɔsɔgɔninjɛ + bɔgɔbɔgɔliyɔrɔ min ka di kosɛbɛ. Ni ɲɔgɔndan sugandili tɛ jɛya ("couplage standard") i tɛ gɛlɛya ye PO taabolow la; i b'a ye kɔfɛ i n'a fɔɲɔgɔndan teliya, tubabu sɛgɛn, juru funteni kɛcogo, ani make{0}}up delays.

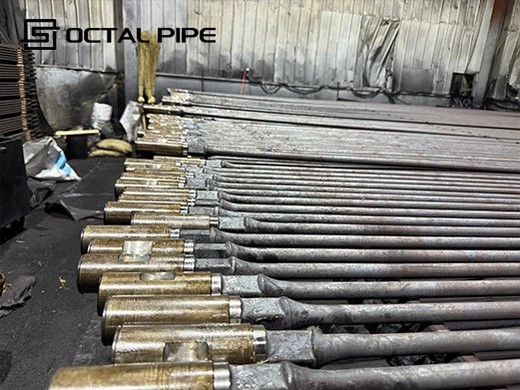

Octal ka fɛnwAPI 11B ka ɲɔgɔndanwiko sitɛmu fɛn min bɛ kɔrɔsi (a tɛ jagofɛn faralen ye-kan):Kalanso T / Kalanso SM, Taama dafalen (FS) / Dingɛ nɔgɔlen (SH) ., ni sɛgɛsɛgɛli daliluw ye minnu b’aw dɛmɛ ka tɛmɛ sɛgɛsɛgɛliw kan minnu bɛ na ani ka dɔ bɔ foro kabakow la.

Coupling selection (i bɛ min ɲɛfɔ, i bɛ min sɔrɔ) .

Mun de bɛ nin kɛ "Octal" ye sanni ka kɛ jenɛriki ye:an tɛ jɛɲɔgɔnya suguyaw dɔrɔn fɔ-an b’aw dɛmɛ ka jɛɲɔgɔnya komandi min bɛ bɛn sɛgɛn bolibaga yɛrɛ ma (deviation/abrasion/clearance), ani an bɛ jɛɲɔgɔnya latigɛ to "auditable" ni sɛbɛnw sanni bɛ se ka file ani inspecteurs bɛ se ka u bolonɔ bila.

An bɛ min kɔlɔsi walasa ka dɔ bɔ jɛɲɔgɔnya-gɛlɛyaw la minnu bɛ tali kɛ ɲɔgɔn na

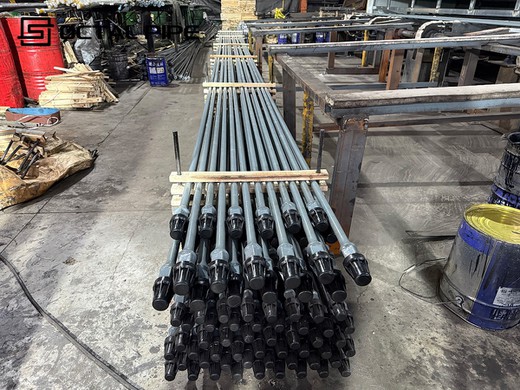

Filɛri dafalen (a tɛ kumasenw ye):dilan dafalen gaging (plug/ring) + jiriw sɛgɛsɛgɛli yelenw API 11B scope kelen-kelen bɛɛ la.

Furakɛli kɔfɛ-funteni-furakɛli gɛlɛya:Class T couplings ka teli ka kɔrɔsi a lamini naHRA 56-62. Ɲɛjirali dɔw(ani ka sɛgɛsɛgɛli kɛ i n’a fɔ a ɲininen bɛ cogo min na).

Wear-focused process for Kalanso SM:deposité hard alloy layer ni processus control laɲini ye deviated/abrasive baarakɛcogo baarakɛcogo la.

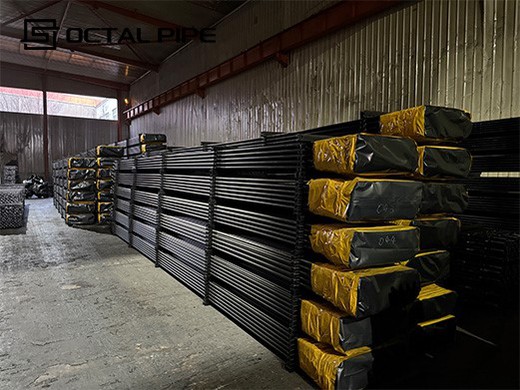

Fila lakanani ni kurunbokari ye:jiri lakanabagaw + yɔrɔ-kɔlɔsili, bɔgɔlan sabatilenw (angle steel/bolts) walasa ka tiɲɛni dɔgɔya sani rig ka maga berew la abada.

Gɛlɛya kɔlɔlɔw dɔgɔyara:make-up banw dɔgɔyara, coupling scrap issues dɔgɔyara, ani "a tun bɛ i ko a ɲɛna a selen nka a ma ɲɛ baara la" sɔsɔliw dɔgɔya.

Berew polisilen (Surface beres) - Sannifeere Spec Tablo

Fibre de verre (FRP) Sucker Rods - Sannifeere Spec Tablo

• Nɛgɛ dilanni & foroko:Alloy steel sugandilen ka kɛɲɛ ni grade → billet → upset forging of ends ye.
• Funteni furakɛli:Normalize + temper (walima quench & temper per design) ka se grade masin nafaw ni core toughness ma; controlled end-upset hardness walasa ka jiri juw lakana. (Ref. 4138M waleyali)
• Fɛn min bɛ kɛ ka ban:Shot-blasting/straightening, jiri tigɛ/rolling per API, lakanani finiw, jiri dope & lakanabagaw.
• Taamaʃyɛn & tugu-tugu-ɲɔgɔn kɔ:Kalanso, OD, janya, funteni hakɛ, ani API monogramme i n’a fɔ a bɛ se ka kɛ cogo min na.

Sucker Rod End Forging ye



Bere laban bɛ sumaya fo ka se degere 1200 ɲɔgɔn ma induction heater kɔnɔ, o kɔfɛ, a bɛ bila die kɔnɔ ka dilan ni degunba ye. O bɛ kɛ sababu ye ka kamankun dɔ dilan min cɛmancɛ ka bon ka tɛmɛ bere farikolo kan.

Nafa min b’a la

Sumanw jɔcogo nɔgɔyali: Foring kɛcogo bɛ fɛnw bolicogo ɲɛ ani ka kɔnɔna nafamafɛnw bɔ yen.

Fanga yiriwali: A bɛ dɔ fara sɛgɛn fanga kan kosɛbɛ ani doni{0}}ta hakɛ kan.

Daŋaniya kɔrɔlen: A b’a to bere bɛ se ka doni girinya segin-segin muɲu dingɛ duguma sigidaw la.

CNC Turning of Sucker Rods (Sucker Beres) ka wuli



Ni baara kɛra ni ɔridinatɛri jatebɔlan (CNC) ye, bere min dilannen don, o laban bɛ kɛ masin na tigitigi ka kɛɲɛ ni porogaramuw ye. O bɛ jɛgɛnsiraw dilan minnu ka bon-tiɲɛni (i n’a fɔ API Modified Square Thread) ni hakɛ tigitigi ye.

Nafa min b’a la

Masina (Masining) min bɛ kɛ ni tigitigi ye: A bɛ jiri hakɛ, a cogoya ani a wulicogo basigilen garanti bere bɛɛ kan.

Jɛɲɔgɔnya Daŋaniya: A bɛ berew jɛgɛncogo sirilenw ni lakananenw sabati walasa ka duguma-dakunw bali minnu bɛ se ka kɛ.

Sɛnɛfɛnw dilanni nafama: Otomatiki taabolo bɛ se ka kɛ sababu ye ka fɛn dilanni sabatilen, -hakɛ caman kɛ.

A ka muɲuli sabatili: A bɛ sanfɛla fini ɲuman dilan, ka degun yɔrɔw dɔgɔya ani ka bere sɛgɛn ɲɛnamaya janya.

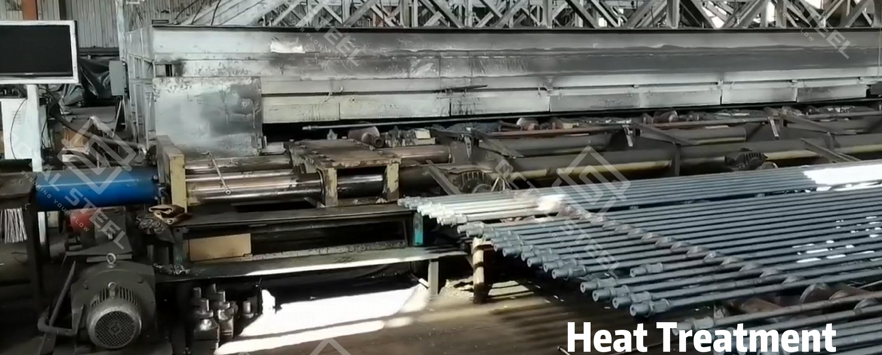

Sucker Rod Funteni furakɛli



Sumaya min kɔlɔsira koɲuman, o kɔfɛ, nɛnɛ teliya (quenching), o kɔfɛ, a bɛ segin ka sumaya ni funteni dɔgɔman ye (tempering) walasa ka fɛnw cogoyaw ɲɛ.

Nafa min b’a la

Yɛlɛma donna sigida la: Fɛnɲɛnɛmafaga bɛ gɛlɛya ni fanga juguba lase mɔgɔ ma.

Toughness (Gɛlɛya) yiriwali: Tempering bɛ dɔ bɔ brittleness la, ka fɛnw bɛɛ lajɛlen ka se ka muɲu ɲɛ.

Baarakɛcogo Muɲuli: A bɛ se ka bere dɛmɛ ka degun miliyɔn caman muɲu dugujukɔrɔ k’a sɔrɔ a ma fɛn tiɲɛ walima ka dɛsɛ.



Condition (min bɛ kɛ foro kɔnɔ) .
Bere-kɔrɔta kɔlɔn dɔ bɛ boli a kɔnɔprofil devié (fɔcogo min bɛ bɔ ɲɔgɔn na).. O juru bɛ ​​daminɛ ka jirateliya la couplage sɛgɛn, torque spikes intermittents, ani "random" make-up delays on the rig-a ka c'a la ni threads bɛ nicked in handling walima ni coupling sugandili ma bɛn clearance/wear conditions ma.

Sannikɛlaw haminankow (sannikɛlaw bɛ jalaki min na) .

• "An ye berew san, nka ɲɔgɔndanw bɛ ka tiɲɛ joona."
• "Rig waati bɛ tiɲɛ bawo jɛɲɔgɔnyaw tɛ kɛ ka ɲɛ."
• "Sɛgɛsɛgɛli dontaw bɛ kɛ dɔɔnin dɔɔnin bawo sɛbɛnw tɛ jiriw kɔlɔsili walima u gɛlɛya jira."
• "An mago bɛ spec segin-ka-bɔnye la batch nata kama, a tɛ trial-ani-error ye."

Octal solution (an bɛ min kɛ cogo wɛrɛ la, ni kɛrɛnkɛrɛnnenw ye aw bɛ se ka komandi kɛ minnu kama)

• Sugandili jɔlen bɛ wear driver lamini na:an bɛ deviation severity + clearance constraints dafa, o kɔfɛ an bɛ ladilikan diKalasi T ni Kalasi SM ka ɲɔgɔndanwaniFS ni SH cɛka da fɛn kan tiɲɛ na min bɛ dɛsɛw bila aw ka kɔlɔnw na (sɔgɔli/sɔgɔli, a tɛ "standard" jenɛriki ye).
• Jɛɲɔgɔnya kɔlɔsili i bɛ se k’a sɛgɛsɛgɛ:berew/couplings kurunw nijiri lakanabagaw, ani pake kɔnɔjiri gaging sɛbɛnw(plug/ring) walasa aw ka sɛgɛsɛgɛlikɛjɛkulu ka se ka sɔnni dabila joona.
• Hardness & mechanical evidence yɔrɔ min na a nafa ka bon:coupling ni rod sɛgɛsɛgɛliw bɛ sɛbɛn (hardness + mechanical tests by grade) walasa ka sɔsɔliw dɔgɔya kɔfɛ ni sɛgɛn bɔra joona.
• NDT n’i y’a ɲɛfɔ:ni aw ka ITP/PO bɛ UT/MT wajibiya zone ɲɛfɔlenw kama, an bɛ fɛnw diNDT ka kunnafoniwni bonya ni sɔnni basigi ye-kan "NDT bɛ sɔrɔ" kan min tɛ jɛya.

Gɛlɛya dɔgɔyara (min bɛ ɲɛ jiginni kɔfɛ) .

Coupling-wear-driven dɛsɛw dɔgɔyara bawo yamaruya kɔnɔ,...kininfɛ jɛɲɔgɔnya kalasi + jateminɛka ɲɛsin deviation/clearance ma.

Rig-side make-up koɲɛw dɔgɔyara bawo jiriw lakananen don anigaging (gaging) bɛ sɛbɛn.

Sɛgɛsɛgɛli min bɛ don teliya la bawo asɛbɛnw pake bɛ bɛn sɔnni sɛgɛsɛgɛli lakikaw ma(traceability, gaging, hardness/mechanical results, ani NDT ka kunnafoniw ni a ɲɛfɔra).

Octal Pipe bɛ baara kɛ i n’a fɔ asucker rod feerelaka ɲɛsin bere pɔnpe porozɛw ma yɔrɔ minnu na sannikɛlaw mago bɛ kalasi/janya kɔlɔsili basigilen na, jɛ-ka-baara tuguni, ani jamana kɔkan pakew kololi walasa ka sɔrɔ teliya la ani ka rig-site jate kɛ.

• PO kelen, sitɛmu kelen min bɛ bɛn ɲɔgɔn ma:Nɛgɛ berew, FRP berew, .Kalasi T / Kalasi SM ka ɲɔgɔndanw (FS/SH) ., bere polisilenw, sow berew, sinker baraw-walasa i kana feerekɛla caman ni ɲɔgɔndan bɛnbaliw ɲɛnabɔ.
• Kalanso sugandili min bɛ dɔ bɔ baara seginni na:An bɛ bɛn ɲɔgɔn maAPI 11B kalasi + ɲɔgɔndan suguyaka se i ka doni, deviation, ani corrosion drivers ma, o kɔfɛ, i ka sugandili hakilinaw lajɛ walasa kɔnɔna sɔnni ka nɔgɔya.
• Sɔn-sɛbɛn labɛnni pake:Cikan kelen-kelen bɛɛ bɛ dɛmɛ niMTC/CMTR, dimension & straightness sɛbɛnw, jiri gaging daliluw, masin & gɛlɛya rapɔɔriw, aniNDT bɛ kunnafoniw di ni a ɲɛfɔra-o la, sɛgɛsɛgɛli min bɛ na, o tɛ wuli ka kɛ imayili nɔfɛtaama ye.
• Fila tiɲɛni kunbɛnni ye QA dɔ ye:Fila lakanabagaw + stable bundling/marking bɛ dɛmɛ ka "loks fine, won't make up" gɛlɛyaw bali minnu bɛ jira dɔrɔn ni rig bɛ makɔnɔni na.
• Delivery aw bɛ se ka plan kɛ a lamini na:Hakɛ minnu bɛ kɛ tuma caman na, olu bɛ se ka labɛn ka bɔ stock la; wajibiyalen kɛrɛnkɛrɛnnenw bɛ fɔ ni ɲɛmɔgɔya-waati ni pakew labɛncogo jɛlen ye (o la, logistiki kana kɛ sira kɔrɔ dogolen ye).

Aw ye ɲɔgɔn sɔrɔ sisan

Ni aw bɛ ka sourcing kɛsucker rod ka feere, fɛɛrɛ teliyalen min bɛ se ka kɛ walasa ka quotation sumalen sɔrɔ, o ye ka ci: grade, diameter, longue range, thread type, coupling requirement, ani fɛn o fɛn bɛ kɛ ka sɔgɔsɔgɔ walima ka sɛgɛn, ka fara taayɔrɔ ni pakew cicogo kan.

Ɲininkaliw



Q1:Ne bɛ se ka API 11B sucker rod grade (C, D, K/KD, HL/HY) ɲuman sugandi cogo di?

A:Pick ka da a kan tiɲɛ na dɛsɛ bolibaga:doni/sɛgɛn, sɔgɔsɔgɔninjɛ (H2S/CO2/chlorides) ., anideviation doncogo. Ni sɔgɔsɔgɔninjɛ de ye bolifɛn ye, fanga sanfɛla dɔrɔn tɛna a ɲɛnabɔ-grade ani coupling sugandili ka kan ka bɛn sigida ma.

Q2:API 11B sutura berew bonya ni janya jumɛnw ka ca kosɛbɛ?

A:Komanw fanba sinsinnen bɛ5/8" ka se 1-1/8" ma.kɔnɔ25 ft walima 30 ftseriyali, ka fara o kansow berewka ɲɛsin yɔrɔjanw ma. Ka kɛɲɛ ni hakɛ/janya seriyali kelen ye, o bɛ stocking nɔgɔya ani ka site mix-ups dɔgɔya.

Q3:Sɛbɛn jumɛnw ka kan ka na ni API 11B sucker rods ni couplings ye?

A:A ka dɔgɔn:fɛnw ɲinini (MTC/CMTR), jiriw jateminɛ sɛbɛnw, hakɛ/tilenni sɛgɛsɛgɛli, masinw sɛgɛsɛgɛli jaabiw, ani gɛlɛya rapɔɔriw. Ka fara kanUT/MT ka kunnafoniwdɔrɔn ni aw ka PO/ITP bɛ NDT de wajibiya.

Sɛbɛnw (certifications) minnu bɛ sɔrɔ



CE ka Seereyaw

ISO 9001 ka seereyaw

API Q1 Seereyaw

ABS ka Seereyaw

AP-5L ka seereyaw

API-5CT ka seereyaw



OD: 1 .5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", fo ka se 1-3/4" ma.

Janya:25 ft / 30 ft berew; 2–10 ft sow berew

Kalanso minnu bɛ sɔrɔ:C, K, D, KD, H. L., H. Y., ani mɔgɔ wɛrɛw

Fɛn minnu bɛ kɛ ka baara kɛ: 4130M, 4138M, 4142M, 4330M, 8630

Couples (ɲɔgɔndɛmɛ):Kalasi T (FS/SH), Kalasi SM (FS/SH), sub-couplings

Fɛn minnu bɛ kɛ ka fɛnw kɛ:Berew polisilenw, sinker bars, centralisateurs, bere string hardware(Per Octal legacy catalogues ani API 11B)
